Export Image

In VoceVista, you can capture any part of the user interface and save it as an image file.

Click File Export Image to open the Export Image dialog box. The following screen appears.

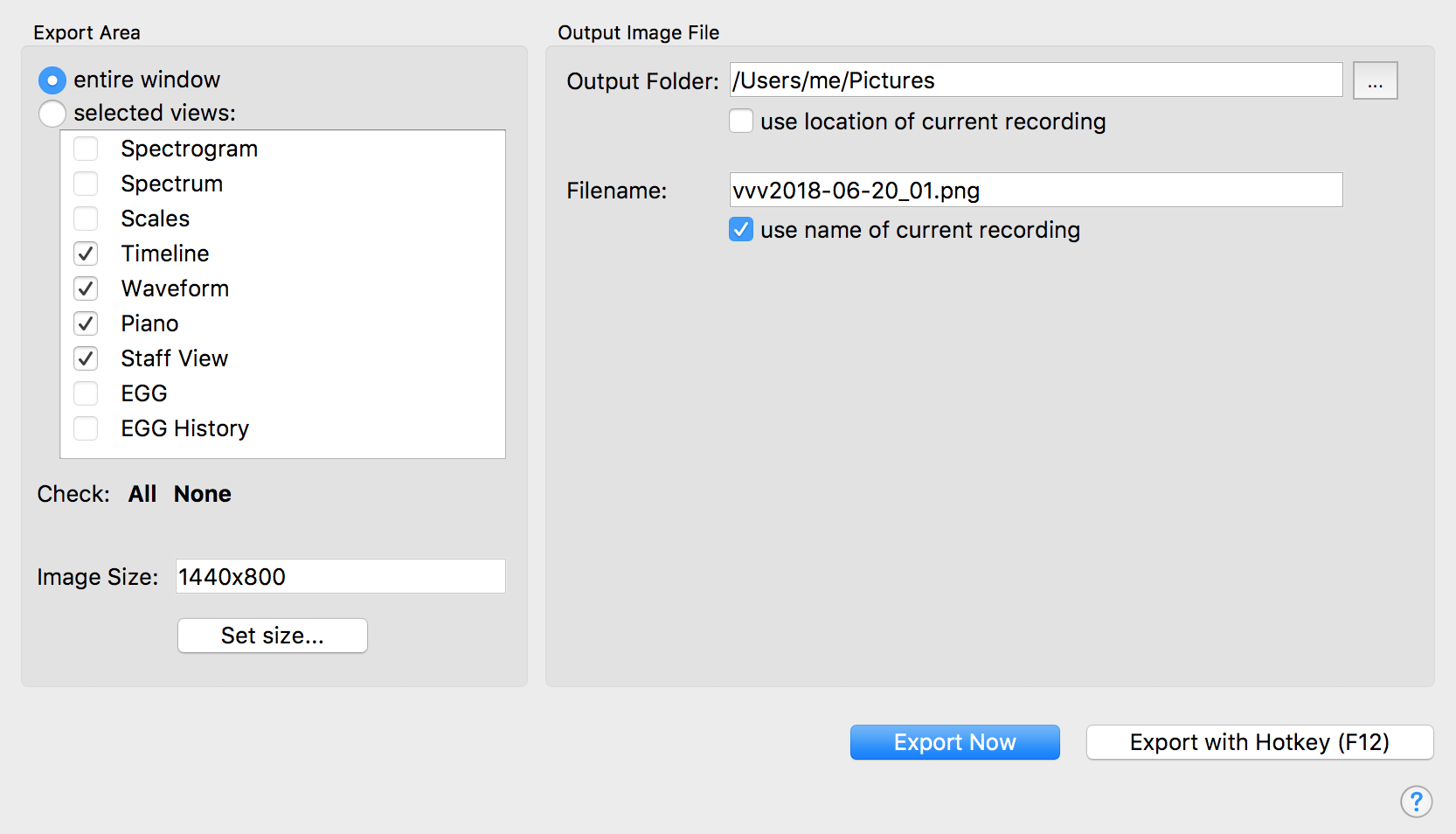

Figure 1. Export Image Dialog Box

The same dialog also captures the analyzer views over time instead of at a single moment. Open it with Export View as Video and it gains a time range and a framerate; see Export View as Video.

This window has two main sections. On the left side in the Export Area section, you specify whether to capture the whole application window or just some of the views in the user interface, and on the right side in the Output Images section, you specify the location where you want to save the graphic and the filename for the resulting image.

Export Area

In this section, select entire window to capture the VoceVista window, or select selected views and then check any of the views that appear below this option. Only those views you select appear in the image. VoceVista exports the smallest rectangle that includes all selected views, so in some cases other views may be included. As you select views, a transparent colored box appears in the application over the views that will appear in the resulting image.

Only selected views that are currently visible in the application window will appear in the image.

Image Size

As you select different views to include, the values in the Image Size refect the size in pixels of the graphic that will be created. Click Set size to change this value.

Set size

Click Set size to open the Set Window Size dialog box where you can select from preset dimensions, or enter custom values for the exported image.

VoceVista will attempt to resize the main window such that the exported views fit your requested size.

Output Image File

This section enables you to specify where to save the exported image and its filename.

Output Folder

The path to the location where the image will be saved appears in this field. Click the three dots to the right of the field to browse to a different location. Check use location of current recording to save the image in the same folder as the recording.

File Name

The file name for the exported image appears in this field. You can edit the file name directly, or click the three dots that appear to the right of the field to enter the file name and path for the exported image. Check use name of current recording to save the image in the same folder as the recording.

If you save multiple images, the application appends a number to the file name so that each is unique. VoceVista will not overwrite existing files.

Export Now

After you have made all of your selections, press Export Now to create the image.

Export with Hotkey

If you want to save your current settings and bypass the Export Image dialog box every time you want to save an image, click Export with Hotkey. Now, every time you press F12 (configurable as Export Image Hotkey through Keyboard Shortcuts on the Settings dialog), the application creates an image using the saved settings.

After you click Export with Hotkey, you have the option to check the include mouse cursor option so that the mouse cursor appears in the images that you create using the hotkey. This can be helpful when you are highlighting information in the application.
